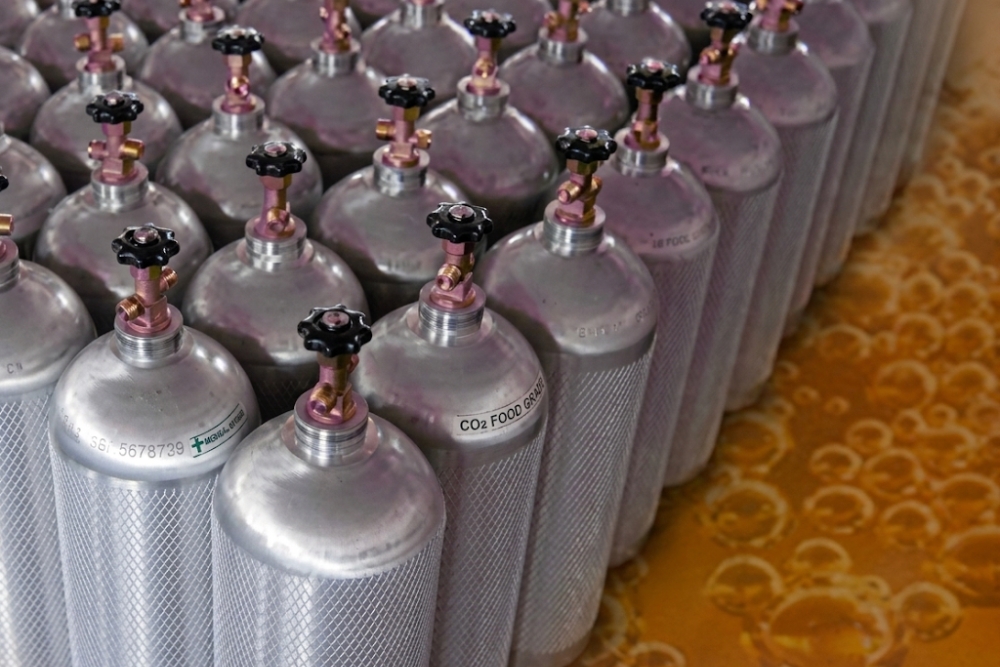

Beverage Cylinder
Beverage Cylinder. Co2 Cylinder for Soda Maker Machine. Al-can is India’s first manufacturer of High Pressure/Low Pressure Aluminium CO2 gas cylinders for beverages. You can enjoy real taste of beverages in aluminium cylinders as Aluminium Cylinders are corrosion resistance with CO2 gas, light weight and easy to carry. While steel cylinders are prone to corrosion with CO2 gas as moisture in gas makes carbonic acid which reacts heavily with steel cylinders. Al-can CO2 cylinders are use in other applications also CO2 cylinder is useful in Fish Tank to maintain greenery, in refrigeration to maintain cooling, in paintball game, in medical for laparoscopy surgery and in soda machine for soft drinks and beers.
Features
- Seamless, Light Weight Cylinder (40% Lighter than steel cylinder).
- Easy to handle and transportation.
- Corrosion Resistant.
- Non-Magnetic.
- No Special Maintenance required, only require requalification every five years.
Information
Specifications are subject to changes, pls contact Alcan for additional information.
Specifications
| DESCRIPTION | Beverages Cylinder | Co2 Soda Machine Cylinder |
|---|---|---|
| WATER CAPACITY | 33.4L | 0.400ML WC to 0.670ML W.C. |
| WORKING PRESSURE | 126 BAR, 150 BAR, 190 BAR, 225 BAR and 250 BAR | 250 BAR |
| STANDARD |
|
|
| QUALITY |
|
|
| MATERIAL | Manufacture from High strength aluminium Alloy 6061A. | Made with seamless, high-strength aluminium alloy 6061A and Alloy 7060 |
| VALVE/THREADS | As per International Specifications | As per International Specifications |
| MARKINGS | As per International Standard. Additional marking available upon request. | As per international standard. Additional marking available upon request. |
| FINISHING | Body – Brush/Lacquer Finish and Neck colour as per Gas to be filled | Body – Brush/Lacquer Finish and Neck colour as per Gas to be filled |
| GRAPHICS | Logo or label available upon request. | Logo or label available upon request. |
A dedicated team performs products check throughout the manufacturing process
CE Mark
PED Approved
PI Mark
TPED Approved
PESO Approved
Dimension Check
Leak Test
Hydraulic Test
Internal Surface Cleanliness Check
Applications
BEVERAGES CYLINDER

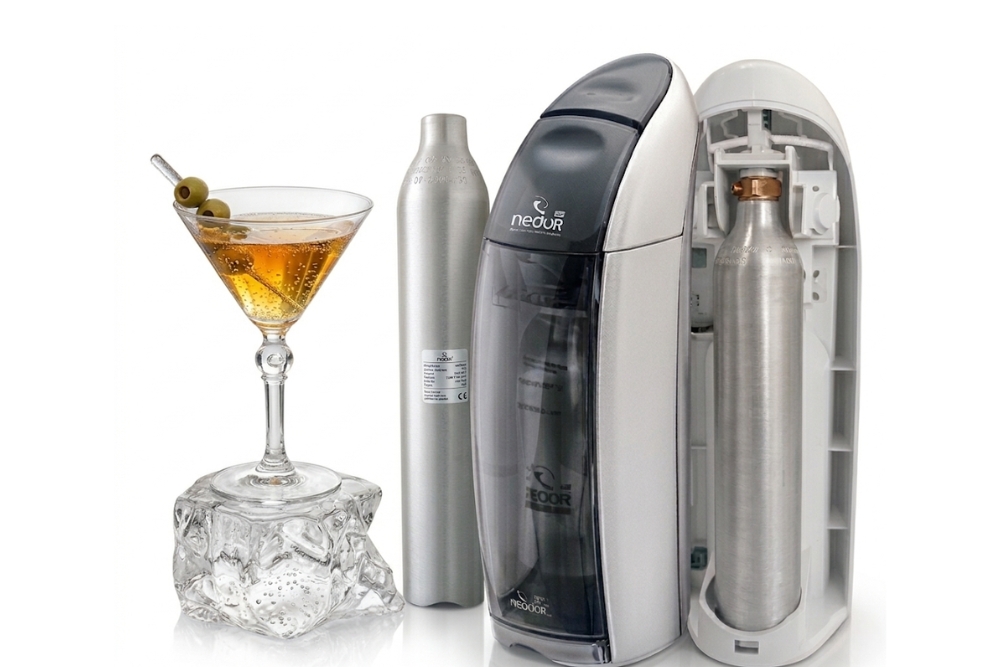

c02 SODA MACHINE CYLINDER
