ACI-1-BS341 |
 |
ACI-1-BS341 |
Standard Body |
Inlet : BS341 |
Flux : 12 levels in adjustment |
Flow range : 0-4lpm; 0-8lpm;0-15lpm;0-25lpm |
|
|
|
ACI-2-CGA540 |
 |
ACI-2-CGA540 |
Standard Body |
Inlet : CGA540 |
Flux : 12 levels in adjustment |
Flow range : 0-4lpm; 0-8lpm;0-15lpm;0-25lpm |
|
|
|
|
ACI-3-CGA870 |
 |
ACI-3-CGA870 |
Mini body |
Inlet : CGA870 |
Flux : 12 levels in adjustment |
Flow range : 0-4lpm; 0-8lpm;0-15lpm;0-25lpm |
|
|
|
|
ACI-4-CGA870-L |
 |
ACI-4-CGA870-L |
Longer body |
Inlet : CGA870 |
Flux : 12 levels in adjustment |
Flow range : 0-4lpm; 0-8lpm;0-15lpm;0-25lpm |
|
|
|
|
ACI-5-BS341 |
 |
Flowmeter |
Flowmeter：1-15LPM |
Inlet screw thread：M10*1mm |
Outlet screw thread：UNF9/16-18" |
Working pressure：3-5bar |
max pressure：10bar |
Regulator |
Gas Type : oxygen |
Input pressure: 230 bar |
Output pressure :3.5bar |
Flow rate ：-15L / min |
Connecting thread:BS3 |
|
|
|

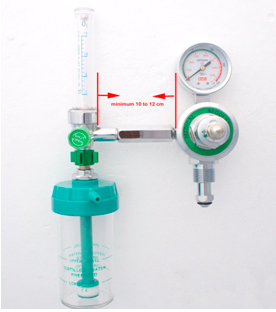

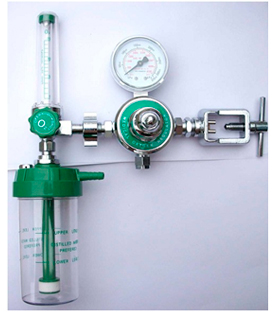

ACI-6-CGA870 |
 |
Flowmeter |
Flowmeter：1-15LPM |
Inlet screw thread：M10*1mm |
Outlet screw thread：UNF9/16-18" |
Working pressure：3-5bar |
max pressure：10bar |
Regulator |
Gas Type : oxygen |
Input pressure: 230 bar |
Output pressure :3.5bar |
Flow rate ：-15L / min |
Connecting thread:CGA870 -Pin Index Valve |
| |
| |
|
| |
 |
Flowmeter |
Flowmeter：1-15LPM |
Inlet screw thread：M10*1mm |
Outlet screw thread：UNF9/16-18" |
Working pressure：3-5bar |
max pressure：10bar |
Top connection Regulator |
Gas Type : oxygen |
Input pressure: 230 bar |
Output pressure :3.5bar |
Flow rate ：-15L / min |
Connecting thread: BS3-TOP |
|
|
